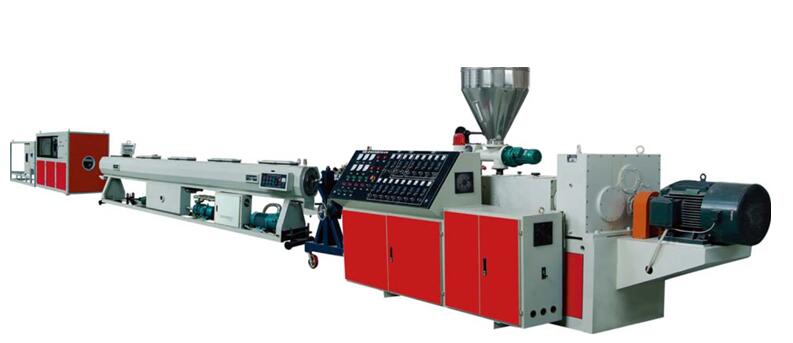

This machine is mainly used to produce agricultural/water supply pipes, gas supply pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PP PE pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PP,PE material combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production. We can also provide PVC PPR extrusion Lines.





Components of PP PE pipe extrusio line

a. Single screw extruder:

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

b. pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

c. Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

d. Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6. Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes
