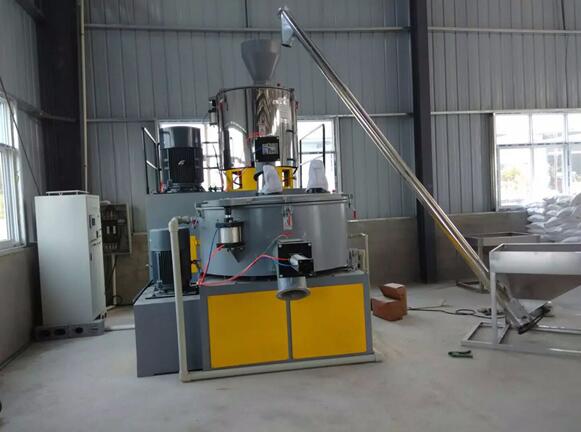

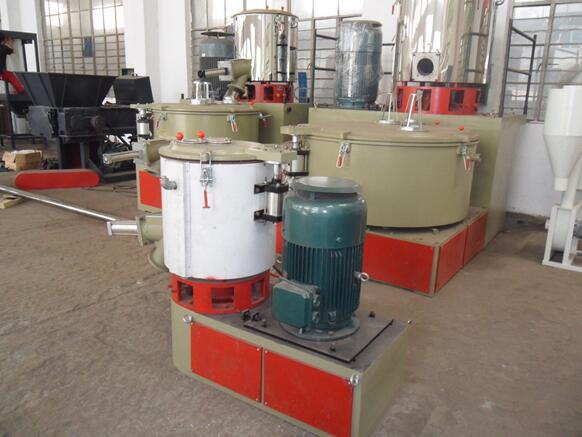

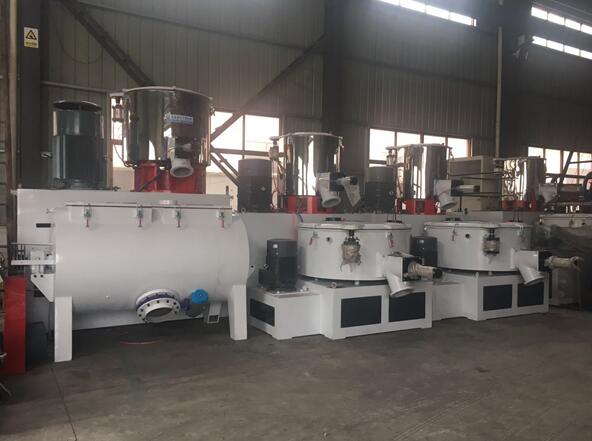

Plastic hot and cold mixing machine

Product Descripition:

These mixers are widely used in mixing, drying, coloring, for all kinds of resin such as PVC, PP, PE. They can also be applied in dryness of ABS , polycarbonate, and mixing hydroxybenzene, Alde Hyde resin.
The unit combines heat mixing and cool mixing together.The materials after heat mixing can be gotting into cool mixer for cooling automatically,exhausts remaining gass and avoids agglomerates.

It is an ideal equipment for plastics mixing

Two layers of sealing are adopted in the pot lid. Pot lid of cooling mixer adopts arch lid, uneasy to be out of shape.

The blades have been passed the test of the dynamic and static balance testing machine.

Main technical parameter:

Model	Capacity (L)	Effective Capacity (L)	Paddle Speed (rpm)	Motor& Heating Power(kw)	Gases Consumption m3/(min)	Outlook Size (mm)	Weight (T)	Mixing Time m/p.pot
Model	Capacity (L)	Effective Capacity (L)	Paddle Speed (rpm)	Motor& Heating Power(kw)	Gases Consumption m3/(min)	Outlook Size (mm)	Weight (T)	Heat	Cool
AS-Z 50/100	50/100	32/75	750/1500-180	7/11-5.5	≤0.3	2300/1800/1900	1.8	8-10	6-8
AS-Z 100-200	100/200	75/160	650/1300-180	14/22/7.5	≤0.3	2500/2000/2200	2.5	8-10	6-8
AS-Z 200/500	200/500	150/320	475/950- 80	30/42/11	≤0.35	4580/2240/2470	3.6	8-10	6-8
AS-Z 300/600	300/600	200/360	475/950/ 130	40/55/11	≤0.35	4580/2240/2500	4.5	8-10	6-8
AS-Z 300/1000B	300/1000	200/640	475/950 /60	40/55/11	≤0.35	4600/3000/4050	4.9	8-10	6-8
AS-Z 500/1000A	500/1000	375/650	430/860 /60	55/75/18.5	≤0.5	4600/3000/4050	5.8	8-10	6-8
SRL-Z 500/1600B	500/1600	375/1200	430/860 /60	55/75/18.5	≤0.5	4600/3000/4050	6.5	8-10	6-8
AS-Z 800/1600A	800/1600	600/1024	357/714- 60	55/75/18.5	≤0.6	6230/4230/4480	8.3	8-12	6-10
AS-Z 800/2500A	800/2500	600/1500	357/714- 50	83/110-30	≤0.6	4850/3860/6550	8.8	8-12	6-10
